022709 DOD

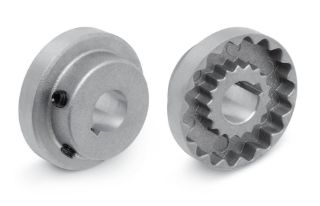

Picture of 022709 DOD

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

022709

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Log in for more accurate pricing

$17.11 / EA

Description

Specifications

Angular Misalignment:	1.0000
Angular Misalignment (Unit):	DEGREE
Axial Misalignment:	0.0600
Axial Misalignment (Unit):	INCH
Bore Diameter (Actual):	0.6250
Bore Diameter (Actual) (Unit):	INCH
Bore Fit:	Clearance
Bore Length:	0.8750
Bore Length (Unit):	INCH
Bore Tolerance Standard:	AGMA 9002
Coupling Component:	Flange
Coupling Size:	4
Coupling Style:	Sleeve
Coupling Type:	Elastomeric
Flange Material:	Aluminum
Horsepower Per 100 Rat:	0.1900
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	7600
Maximum Speed (Unit):	RPM
Parallel Misalignment:	0.0100
Parallel Misalignment (Unit):	INCH
Rated Torque:	120.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bored To Size
Shaft Spacing:	Close Coupled

Resources

Tech Bulletin Installation
