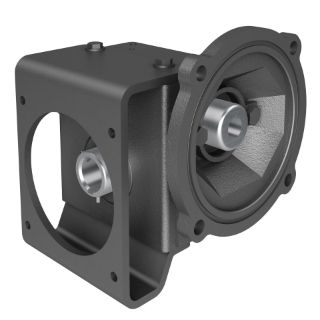

Actual Product May Vary From Image

0230-01669 HUB

Name: 0230-01669 HUB
SKU: 0230-01669 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-01669 180PCX Right Angle Single Reduction Style L Worm Gear Reducer With Side Mounting Flange, C-Face Quill Input, Hollow Bore Output, 3/4 hp Input, 30:1 Gear, 58.3 rpm Maximum Output, 557 in-lb Output Torque Rating

Manufacturer part number: 0230-01669

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 180PCX, 30:1 Gear Ratio, 3/4 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 0.938 in Dia Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 557 in-lb Output, 1-3/4 in Centre Distance, 1/4 x 1/8 in Output Keyway, 71.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.71 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Dimensions:	5.71 in W
Efficiency:	71.5 %
Gear Ratio:	30:1
Horsepower:	3/4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Size:	0.938 in Dia
Output Type:	Hollow Bore
Series:	180PCX
Torque Rating:	557 in-lb Output
