0230-02303 HUB

Name: 0230-02303 HUB
Brand: Hub City
SKU: 0230-02303 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-02303

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

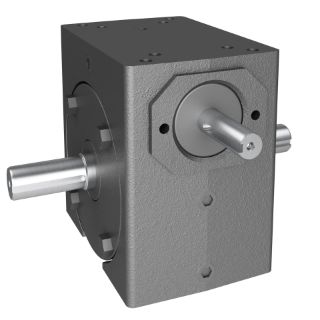

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 210PCX, 10:1 Gear Ratio, 2-1/2 hp Input, Shaft Input, Shaft Output, 0.625 in Dia x 1.76 in L Input, 0.875 in Dia x 2.19 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 758 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Input/Output Keyway, 84.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W x 6 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Country of Origin:	US
Dimensions:	8-1/2 in W x 6 in H
Efficiency:	84.2 %
Gear Ratio:	10:1
Horsepower:	2-1/2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	0.875 in Dia x 2.19 in L
Output Type:	Shaft
Series:	210PCX
Torque Rating:	758 in-lb Output
