0230-02320 HUB

Name: 0230-02320 HUB
Brand: Hub City
SKU: 0230-02320 HUB
Availability: OutOfStock

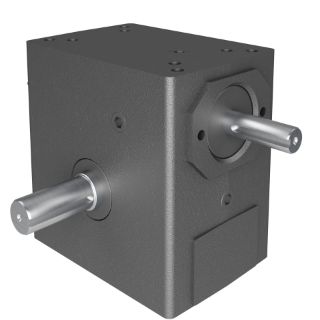

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-02320

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 210PCX, 40:1 Gear Ratio, 0.83 hp Input, Shaft Input, Shaft Output, 0.625 in Dia x 1.76 in L Input, 0.875 in Dia x 2.19 in L Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 838 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Input/Output Keyway, 69.9 % Efficiency, Conventional Oil Lubrication, Cast Iron, 6 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Country of Origin:	US
Dimensions:	6 in H
Efficiency:	69.9 %
Gear Ratio:	40:1
Horsepower:	0.83 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	0.875 in Dia x 2.19 in L
Output Type:	Shaft
Series:	210PCX
Torque Rating:	838 in-lb Output
