0230-07025 HUB

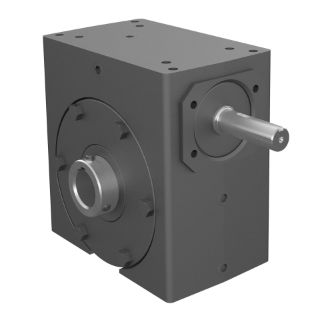

Hub City® PowerCubeX® 0230-07025 260PCX Right Angle Single Reduction Style A Worm Gear Reducer, Shaft Input, Hollow Bore Output, 5 hp Input, 10:1 Gear, 175 rpm Maximum Output, 1485 in-lb Output Torque Rating
Manufacturer part number: 0230-07025
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 260PCX, 10:1 Gear Ratio, 5 hp Input, Shaft Input, Hollow Bore Output, 0.75 in Dia x 2.38 in L Input, 1.438 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1485 in-lb Output, 2.63 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 1/8 in Output Keyway, 84.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.93 in W x 7.438 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting
  • FKM seals

Specifications

Centre Distance:2.63 in
Dimensions:5.93 in W x 7.438 in H
Efficiency:84.8 %
Gear Ratio:10:1
Horsepower:5 hp Input
Input Maximum Speed:1750 rpm
Input Size:0.75 in Dia x 2.38 in L
Input Type:Shaft
Keyway Size:3/16 x 3/32 in Input, 3/8 x 1/8 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:175 rpm
Output Size:1.438 in Dia
Output Type:Hollow Bore
Series:260PCX
Torque Rating:1485 in-lb Output
