Home / 0230-07110 HUB

0230-07110 HUB

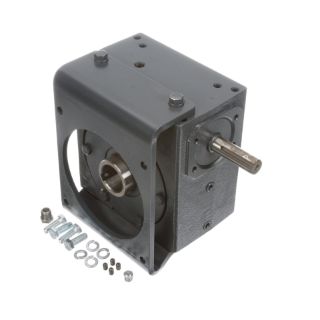

Picture of 0230-07110 HUB
Actual Product May Vary From Image

Product Details

Manufacturer:
Hub City
Manufacturer part number:
0230-07110
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 260PCX, 15:1 Gear Ratio, 3.49 hp Input, Shaft Input, Hollow Bore Output, 0.75 in Dia x 2.38 in L Input, 1 in Dia Output, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1570 in-lb Output, 2.63 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 83.2 % Efficiency, Conventional Oil Lubrication, Cast Iron

Specifications

Gear Type:263
Input Diameter (mm):1
Mounting Type:POWERCUBEX WORM GEAR DRIVE
Output Shaft:Finished Bore
Ratio Range:5 thru 60
Thermal Output Torque Rating @ 1750 Input:66279896009
