0230-07149 HUB

Name: 0230-07149 HUB
Brand: Hub City
SKU: 0230-07149 HUB
Availability: OutOfStock

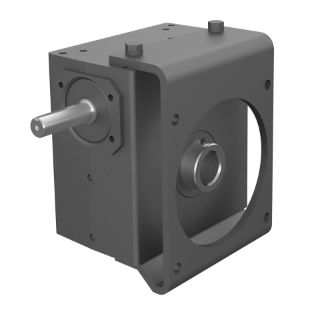

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-07149

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 260PCX, 30:1 Gear Ratio, 2 hp Input, Shaft Input, Hollow Bore Output, 3/4 in Dia Input, 1.438 in Dia Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1634 in-lb Output Torque, 2.63 in Centre Distance, 3/16 x 3/32 in Input Keyway, 77 % Efficiency, Conventional Oil Lubrication, Cast Iron, 6.6 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Dimensions:	6.6 in W
Efficiency:	77 %
Gear Ratio:	30:1
Horsepower:	2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	3/4 in Dia
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	260PCX
Torque Rating:	1634 in-lb Output
