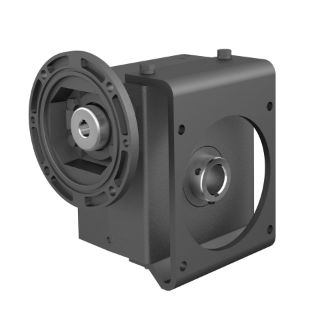

Actual Product May Vary From Image

0230-07713 HUB

Name: 0230-07713 HUB
SKU: 0230-07713 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-07713 260PCX Right Angle Single Reduction Style R Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 2 hp Input, 30:1 Gear, 58.3 rpm Maximum Output, 1634 in-lb Output Torque Rating

Manufacturer part number: 0230-07713

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 260PCX, 30:1 Gear Ratio, 2 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1.188 in Dia Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1634 in-lb Output, 2.63 in Centre Distance, 77 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Efficiency:	77 %
Gear Ratio:	30:1
Horsepower:	2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Size:	1.188 in Dia
Output Type:	Hollow Bore
Series:	260PCX
Torque Rating:	1634 in-lb Output
