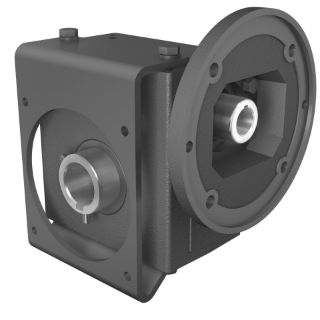

Actual Product May Vary From Image

0230-15232 HUB

Name: 0230-15232 HUB
SKU: 0230-15232 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-15232 320PCX Right Angle Single Reduction Style L Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 2-3/4 hp Input, 40:1 Gear, 43.8 rpm Maximum Output, 2906 in-lb Output Torque Rating

Manufacturer part number: 0230-15232

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 320PCX, 40:1 Gear Ratio, 2-3/4 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1.938 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2906 in-lb Output, 3-1/4 in Centre Distance, 3/8 x 3/16 in Output Keyway, 73.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Efficiency:	73.3 %
Gear Ratio:	40:1
Horsepower:	2-3/4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	1.938 in Dia
Output Type:	Hollow Bore
Series:	320PCX
Torque Rating:	2906 in-lb Output
