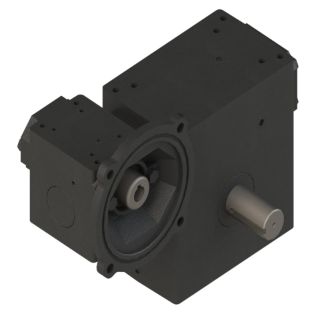

Actual Product May Vary From Image

0230-30382 HUB

Name: 0230-30382 HUB
SKU: 0230-30382 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-30382 3200 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 2.45 hp Input, 75:1 Gear, 23.3 rpm Maximum Output, 4343 in-lb Output Torque Rating

Manufacturer part number: 0230-30382

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 75:1 Gear Ratio, 2.45 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.375 in Dia x 2.84 in L Output, 23.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4343 in-lb Output, 3-1/4 in Centre Distance, 5/16 x 5/32 in Output Keyway, 65.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 10.88 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Dimensions:	10.88 in W
Efficiency:	65.8 %
Gear Ratio:	75:1
Horsepower:	2.45 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	5/16 x 5/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	23.3 rpm
Output Size:	1.375 in Dia x 2.84 in L
Output Type:	Shaft
Series:	3200
Torque Rating:	4343 in-lb Output
