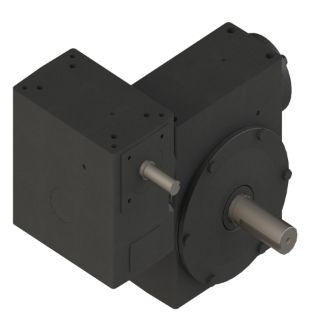

Actual Product May Vary From Image

0230-39833 HUB

Name: 0230-39833 HUB
SKU: 0230-39833 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-39833 5200 Double Reduction Right Angle Single Output Worm Gear Reducer, Shaft Input, Shaft Output, 1.19 hp Input, 1000:1 Gear, 1.75 rpm Maximum Output, 19580 in-lb Output Torque Rating

Manufacturer part number: 0230-39833

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Single Output

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Single Output, Series: 5200, 1000:1 Gear Ratio, 1.19 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 1.75 in Dia x 4.47 in L Output, 1.75 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 19580 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 45.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 15.62 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Dimensions:	15.62 in W
Efficiency:	45.7 %
Gear Ratio:	1000:1
Horsepower:	1.19 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	1.75 rpm
Output Size:	1.75 in Dia x 4.47 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	19580 in-lb Output
