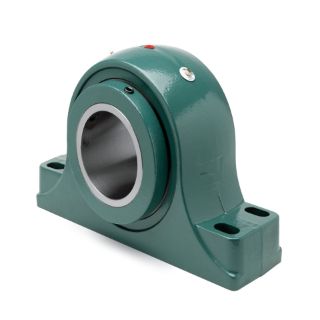

Actual Product May Vary From Image

023032 DOD

Name: 023032 DOD
Brand: Dodge
SKU: 023032 DOD
Price: 1,204.71 USD
Availability: InStock

P4B-E-307R

Manufacturer: Dodge

Manufacturer part number: 023032

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
2	4
Loading...

$1,204.71

Qty:

Product Details

Base to Center Height:	3.7500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	11.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	10.7500
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.3800
Bolt Width (Unit):	INCH
Bore Length:	5.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1640
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	3.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	108600
Static Load Capacity (Unit):	POUND_FORCE
