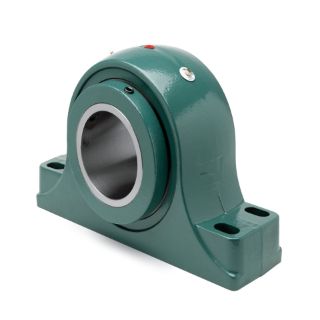

Actual Product May Vary From Image

023040 DOD

Name: 023040 DOD
Brand: Dodge
SKU: 023040 DOD
Price: 6,305.88 USD
Availability: InStock

P4B-E-507R

Manufacturer: Dodge

Manufacturer part number: 023040

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	1
Loading...

$6,305.88

Qty:

Product Details

Base to Center Height:	6.6900
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	1.0000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	19.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	17.3800
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.7500
Bolt Width (Unit):	INCH
Bore Length:	9.0000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	915
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	5.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	354000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-500
