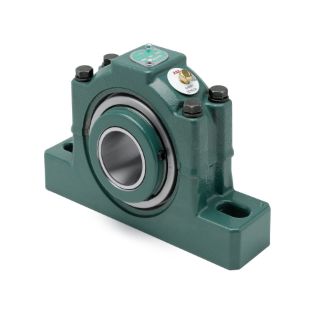

Picture of 023199 DOD

Actual Product May Vary From Image

023199 DOD

P2B-K-203RE

Manufacturer: Dodge

Manufacturer part number: 023199

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,190.72

Qty:

Product Details

Specifications

Base to Center Height:	3.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	9.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	8.0600
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.1600
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2730
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.1875
Shaft Diameter (Unit):	INCH
Static Load Capacity:	48200
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-200,TS-300

Resources

Tech Bulletin Engineering Drawing Installation
