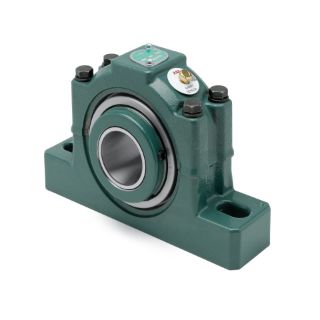

Picture of 023205 DOD

Actual Product May Vary From Image

023205 DOD

P2B-K-215RE

Manufacturer: Dodge

Manufacturer part number: 023205

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,890.82

Qty:

Product Details

Specifications

Base to Center Height:	3.7500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	11.5000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.8800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.7800
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2060
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	61200
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-300,TS-400

Resources

Tech Bulletin Engineering Drawing Installation
