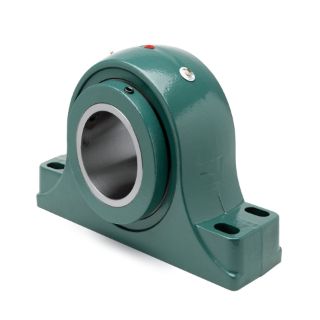

Actual Product May Vary From Image

023690 DOD

Name: 023690 DOD
Brand: Dodge
SKU: 023690 DOD
Price: 1,750.59 USD
Availability: InStock

P4B-E-315R

Manufacturer: Dodge

Manufacturer part number: 023690

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
2	0
Loading...

$1,750.59

Qty:

Product Details

Base to Center Height:	4.2500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	12.7500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	12.2500
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.2500
Bolt Width (Unit):	INCH
Bore Length:	6.2500
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1530
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	3.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	154000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-400
