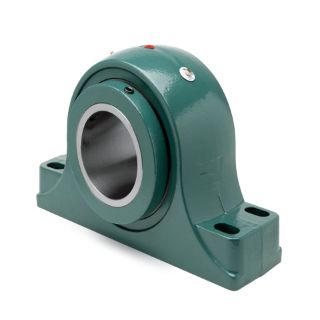

Actual Product May Vary From Image

023694 DOD

Name: 023694 DOD
Brand: Dodge
SKU: 023694 DOD
Price: 3,811.76 USD
Availability: InStock

P4B-E-415R

Manufacturer: Dodge

Manufacturer part number: 023694

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	1
Loading...

$3,811.76

Qty:

Product Details

Base to Center Height:	5.5000
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	15.7500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	15.2500
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.8800
Bolt Width (Unit):	INCH
Bore Length:	7.2500
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1200
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	4.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	266000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-400,TS-500
