0251005.VXL LIT

Name: 0251005.VXL LIT
Brand: Littelfuse
SKU: 0251005.VXL LIT
Price: 15.66 USD
Availability: OutOfStock

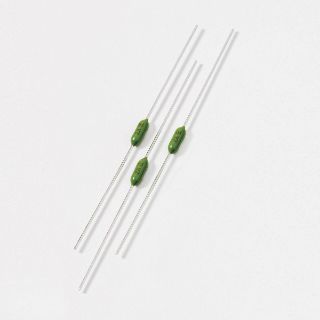

Littelfuse® PICO® II 251001L TLN 251 Fast Acting Electronic Fuse, 1 A, 125 VAC/VDC, 300 A Interrupt, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: 251001L

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$15.66

Qty:

Product Details

Brand Name

Littelfuse®

Type

Fast Acting

Description

The PICO® II very fast acting fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.

Littelfuse® PICO® II, 251001L, Electronic Fuse, Fast Acting, Series: TLN 251, Non-Indicating, 1 A, 125 VAC/VDC, 300 A Interrupt, Axial Lead Terminal, Through Hole Mounting, Cartridge Body, Ceramic, 2.8 mm Dia x 7.11 mm L Body

Application

Flat Panel Display TV, LCD Monitor, LCD Backlight Inverter, Office Machines, Power Supply, Audio/Video System, Lighting System and Medical Equipment Applications

Standards

CSA 29862 | CE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Wide operating temperature range of -55 to 125 deg C
Pure Tin-coated copper wire leads
4 hrs minimum at 100%, 1 sec maximum at 200% of opening time
Standard very fast acting
Halogen-free available
Wide current rating range
2.062 in lead length

Specifications

Amperage Rating:	1 A
Body Size:	2.8 mm Dia x 7.11 mm L
Body Type:	Cartridge
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	300 A
Material:	Ceramic
Mounting Type:	Through Hole
Series:	TLN 251
Terminal Type:	Axial Lead
Voltage Rating:	125 VAC/VDC
