Home / Motors / AC Three Phase Motors / 03018ET3ECT286TF1-W2 WEG

03018ET3ECT286TF1-W2 WEG

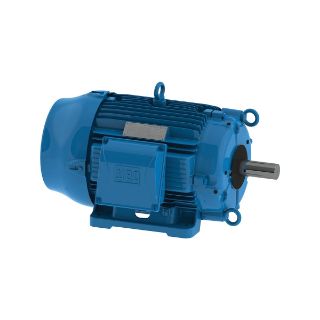

Picture of 03018ET3ECT286TF1-W2 WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
03018ET3ECT286TF1-W2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,738.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110193002
Motion Industries - 04863155

Description

WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 30 hp, 208/230/460 VAC, 77.6 to 70.2/35.1 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 284/6T Frame, 1-7/8 in Dia x 3-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 88.1 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 27.929 in L Dimensions

Application

Cooling Tower Applications

Standards

NEMA Premium®

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Double sealed bearings
  • Double impregnation and bake
  • Internally and externally epoxy painted
  • High starting torque
  • IP55 rating

Specifications

Amperage Rating:77.6 to 70.2/35.1 A
Application Type:Air Handling Motors, Chiller/Cooling Tower Motors
Bearing Type:Ball
Dimensions:27.929 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:284/6T
Frequency Rating:60 Hz
Horsepower:30 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:3
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:1-7/8 in Dia x 3-1/4 in L
Speed:1765 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:88.1 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
30 HP
Type
TEFC – Three-Phase – Foot Mount – NEMA Premium
