030AT30-2BA19 DIC

Name: 030AT30-2BA19 DIC
Brand: Dichtomatik
SKU: 030AT30-2BA19 DIC
Availability: OutOfStock

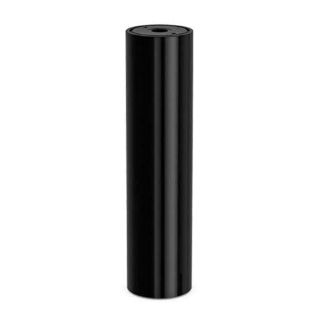

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

030AT30-2BA19

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

DICHTOMATIK

Description

The wide variety and versatility of our Piston Accumulators allows their use in over 90% of all potential applications. Proven durability and performance deliver freedom from potential bladder failure. From volumes of a few cubic inches to hundreds of gallons and up to 20000 psi MAWP (1380 bar), the piston type hydro-pneumatic accumulator can meet the diverse needs of industry with standard or custom designs, a comprehensive selection of gas and fluid connections, and a wide range of materials, seal types, and configurations.

DICHTOMATIK Piston Accumulator, Series: AT Series, 2 pt Fluid Volume, 62 cu-in Gas, 3 in OD Dia, 17-1/2 in Height, 3000 psi, SAE-8 Inlet, -20 to 200 deg F, Steel

Application

Construction, Energy, Fluid Power, Agriculture, Automotive Applications, Suspension, Oil and Gas Industries

Standards

ASME/NB | CE/PED | SELO

Features

Customizable designs
Rapid production of prototypes
The engineering process is optimized to meet the specific requirements of the given application
High-quality seal material with low permeation
Fully automatic assembly procedure
Possibility of a high piston speed
Small hysteresis
High durability and low maintenance
Compact design
Threaded gas head, welded fluid head piston accumulator

Includes

Butyl Seal and N2 Gas Valve

Specifications

Diameter:	3 in OD
Fluid Volume:	2 pt
Gas Volume:	62 cu-in
Height:	17-1/2 in
Inlet Size:	SAE-8
Material:	Steel
Pressure Rating:	3000 psi
Series:	AT Series
Temperature Rating:	-20 to 200 deg F
