0312004.VXP LIT

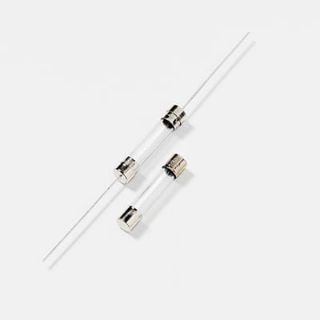

Littelfuse® POWR-GARD® 312004P Type 3AG Fast Acting Cartridge Fuse, 4 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 312004P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.36

Product Details

Brand Name

Littelfuse®

Type

Type 3AG Fast Acting

Description

The 3AG fast acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Littelfuse® POWR-GARD® Cartridge Fuse, Type 3AG Fast Acting, Series: 312, Non-Indicating, 4 A, 250 VAC, 10 kA Interrupt, 4 hr, 1 hr, 5 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

RoHS Compliant | UL 248-14 | UL File No. E10480 | CSA File No. LR29862 | ICC Approved | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

  • Lead-free
  • -55 to 125 deg C operating temperature
  • Nickel plated brass cap
  • 5 s maximum at 200%, 4 hr minimum at 100% and 1 hr maximum at 135% opening time
  • 10 kA at 125 VAC interrupting rating

Specifications

Amperage Rating:4 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cartridge
Country of Origin:MX
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Glass
Mounting Type:Holder
Response Time:4 hr, 1 hr, 5 s
Series:312
Terminal Type:Ferrule
Voltage Rating:250 VAC
