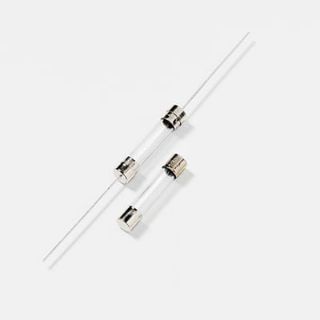

Actual Product May Vary From Image

03121.25VXP LIT

Name: 03121.25VXP LIT
Brand: Littelfuse
SKU: 03121.25VXP LIT
Price: 1.18 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® 3121.25P Fast Acting Cartridge Fuse, 1.25 A, 250 VAC, 10 kA Interrupt, Class: RK1, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: 3121.25P

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.18

Qty:

Product Details

Brand Name

Littelfuse®

Type

Fast Acting

Description

The 3AG Fast acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Littelfuse® POWR-GARD® Cartridge Fuse, Fast Acting, Series: 312, Non-Indicating, 1.25 A, 250 VAC, 10 kA Interrupt, Class: RK1, 4 hr, 1 hr, 5 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

Standards

UL 248-14 | UL File No. E10480 | CSA LR29862 | IC Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Lead-free
-55 to 125 deg C operating temperature
Nickel plated brass cap
5 s maximum at 200%, 4 hr minimum at 100% and 1 hr maximum at 135% opening time
10 kA at 125 VAC interrupting rating

Specifications

Amperage Rating:	1.25 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Glass
Mounting Type:	Holder
Response Time:	4 hr, 1 hr, 5 s
Series:	312
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
