033291193 HWD

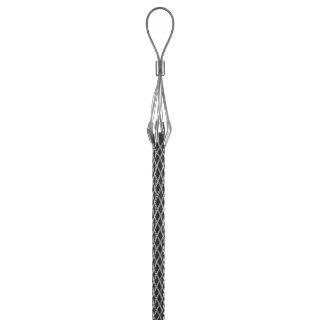

Wiring Device-Kellems 033291193 Low Profile Fiber Optic Pulling Grip, 0.1 to 0.22 in Cable, 10 in L Mesh, 180 lb Load, Galvanized Steel
Manufacturer part number: 033291193
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$108.18

Product Details

Brand Name

Wiring Device-Kellems

Type

Low Profile Fiber Optic

Description

Kellems® Pulling Grips for fiber optic cable are made of high strength galvanized steel strand. They feature a multiweave mesh, with one-half the mesh length double weave, and the second half single weave. This special weave provides positive holding power while allowing the grip to remain flexible with no damage to the cable jacket. Added features include a steel nose cone which protects the cable end and allows the grip to pass easily through conduit and enclosures. The eye connects easily to a swivel or a pulling line. Several grip sizes are available to accommodate all diameters of fiber optic cable.
Wiring Device-Kellems Pulling Grip, Low Profile Fiber Optic, 0.1 to 0.22 in Cable, Circuit Wire Cable, Split Single/Double Weave Mesh, 10 in Mesh Length, Flexible Eye, 7-1/2 in Eye Length, 180 lb Load, Galvanized Steel

Application

Fiber Optic Cable and General Cable Pulling Applications

Standards

CSA Certified | UL Listed

Features

  • Galvanized steel mesh provides high strength
  • High strength multiweave mesh for positive holding power
  • Highly flexible mesh to follow the pulling path of the cable

Specifications

Cable Size:0.1 to 0.22 in
Cable Type:Circuit Wire
Country of Origin:US
Eye Length:7-1/2 in
Eye Type:Flexible
Load Capacity:180 lb
Material:Galvanized Steel
Mesh Length:10 in
Mesh Type:Single/Double Weave
