Actual Product May Vary From Image

0333090 FAL

Name: 0333090 FAL
Brand: Rexnord
SKU: 0333090 FAL
Price: 2,867.30 USD
Availability: OutOfStock

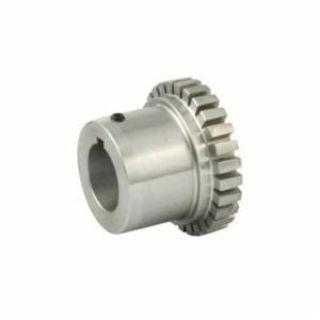

FALK® Steelflex® 0333090 Straight Rough Stock Bore Grid Coupling Hub, 1150T Coupling, 4-1/8 to 8 in Dia Bore, 4.21 in Length Through Bore, 10.6 in Dia Hub, Steel

Manufacturer: Rexnord

Manufacturer part number: 0333090

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,867.30

Qty:

Product Details

Brand Name

FALK®

Type

Straight Rough Stock Bore

Description

Straight Bore Style-Small Through Hole-Rough Stock (RSB) Hubs for T10:T20 Series-Close Coupled Double-Flexing Couplings. The Steelflex® T-Hub design is the common hub used in T10 and T20 close coupled couplings as well as other configurations. Hubs are available in RSB-Rough Stock Bore (usually solid hub) for boring by others, stock bores and custom bores.

FALK® Steelflex® Grid Coupling Hub, Straight Rough Stock Bore, 1150T Coupling, 4-1/8 to 8 in Bore Dia, 10.6 in Hub Dia, 7.2 in Hub Length, 1500/2000 rpm Maximum, 4.21 in Length Through Bore, Steel

Application

For FALK® Steelflex® type T10/T20 close coupled grid couplings

Specifications

Bore Diameter:	4-1/8 to 8 in
Coupling Size:	1150T
Hub Diameter:	10.6 in
Hub Length:	7.2 in
Length Through Bore:	4.21 in
Material:	Steel
Maximum Speed:	1500/2000 rpm
