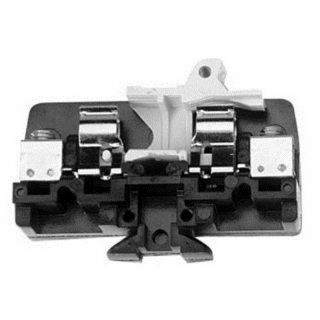

0352 IDE

Features: Provide In-Line Circuit Protection For Any Circuit Or Group Of Circuits; Three Contact Styles For Terminated Or Unterminated Wire Are Conservatively Rated To 30A; Remove, Check And Replace Fuses Safely And Quickly Switch-Action Fuse Blocks Open Circuits Before Fuse Can Be Removed Or Installed; Good Circuit Density When Mounted Adjacently 91 Circuits Per 6 Foot Length; Use In High Temperature Applications Phenolic Housing Withstands Temperatures Up To 302°F (150°C); Flat Base Models For Surface Mounting, Dovetail Base Models For Standard Channel; Only One End Section Needed Per Block Assembly; Open Or Close Several Circuits Simultaneously Holes In Puller Handles Allow Use Of Nylon Ganging Rods; Readily Identifiable Circuits Mark Directly On White, Matte-Surface Puller Assembly, Marking Tab On Block Or Use Removable Marking Tape; Sections Snap-Fit With Heavy Duty And Intermediate Heavy Duty Blocks; Accepts #22 To #8 AWG; Rated 30A; Contact Type: Tubular Screw; Wire Size: #18 To #8; Wire Strip: 1/2 IN; Frequency: 60 HZ; Breakdown Voltage: 8400 VAC; Dielectric Strength (rh40% At Sea Level): 300 V/MIL Thickness (Per ASTM D149); Ul High Voltage Arc Testing: 0.49 - 0.58 IN/MINT; Water Absorption (24 Hr Pct Weight Gain): 0.45 PCT (Per ASTM D570); Flammability: 94V-1 (Per UL94); Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343); Radiation Resistance (ergs G1 C): 2.7 X 10 Power 7 Min; Center-to-center Spacing: 0.750 IN CL: 16 Circuits Per Foot; Fuse Type: Ferrule-Type Cartridge; Includes: Puller, Tubular Screw
