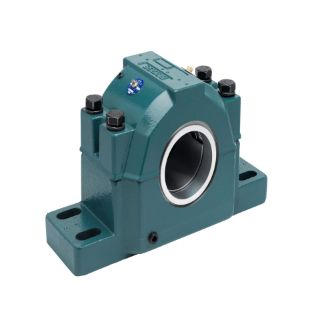

Actual Product May Vary From Image

039392 DOD

Name: 039392 DOD
Brand: Dodge
SKU: 039392 DOD
Availability: OutOfStock

039392 CP4B317-USAF-085MTT USAF

Manufacturer: Dodge

Manufacturer part number: 039392

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

Price on Request

Qty:

Product Details

Base to Center Height:	4.5000
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	13.1300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	11.6300
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.3800
Bolt Width (Unit):	INCH
Bore Length:	6.7800
Bore Length (Unit):	INCH
Dynamic Load Capacity:	122000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Housing Construction:	Split
Housing Dimensional Standard:	SAF
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2000
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Direct Mount
Shaft Diameter:	85.0000
Shaft Diameter (Unit):	MILLIMETER
Static Load Capacity:	125000
Static Load Capacity (Unit):	POUND_FORCE
