048011 DOD

P2B-UN2-215 UNI-II
Manufacturer: Dodge
Manufacturer part number: 048011
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$2,262.17

Product Details

Specifications

Base to Center Height:3.2500
Base to Center Height (Unit):INCH

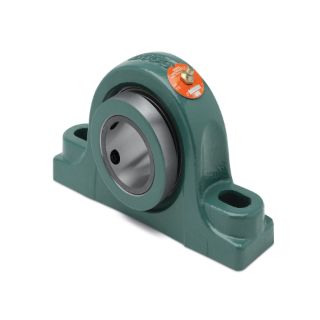

Bearing Component:Mounted Bearing
Bearing Type:Spherical Roller
Bolt Diameter:0.7500
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):8.4400
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):7.8100
Bolt to Bolt (Min) (Unit):INCH
Bore Length:2.4500
Bore Length (Unit):INCH
Dynamic Load Capacity:41500
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:MobilGrease XHP222
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Pillow Block
Insert Material:Steel
Lubrication:Grease
Maximum Speed:1700
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Shaft Attachment:Setscrew
Shaft Diameter:2.9375
Shaft Diameter (Unit):INCH
Static Load Capacity:53000
Static Load Capacity (Unit):POUND_FORCE
Take-Up Frame Size:LD-45,TS-350
