Actual Product May Vary From Image

05018AT3ECT326T-W22 WEG

Name: 05018AT3ECT326T-W22 WEG
Brand: WEG
SKU: 05018AT3ECT326T-W22 WEG
Price: 6,041.00 USD
Availability: OutOfStock

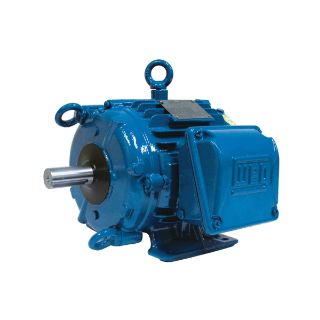

WEG 05018AT3ECT326T-W22 Continuous-Duty AC Motor, Totally Enclosed Air Over Enclosure, 50 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 324/6T Frame, 1775 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 05018AT3ECT326T-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$6,041.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112709426
Motion Industries - 06142778

Description

WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.

WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 50 hp, 208/230/460 VAC, 131 to 118/59.2 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, Totally Enclosed Air Over Enclosure, 324/6T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 146 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 30.071 in L Dimensions

Application

Cooling Tower Applications

Standards

NEMA PremiumÂ®

Features

Stainless steel nameplate laser etched with high contrast background
Double sealed bearings
Double impregnation and bake
Internally and externally epoxy painted
High starting torque

Specifications

Amperage Rating:	131 to 118/59.2 A
Application Type:	Air Handling Motors, Chiller/Cooling Tower Motors
Bearing Type:	Ball
Dimensions:	30.071 in L
Enclosure Type:	Totally Enclosed Air Over
Frame:	324/6T
Frequency Rating:	60 Hz
Horsepower:	50 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Speed:	1775 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	146 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
