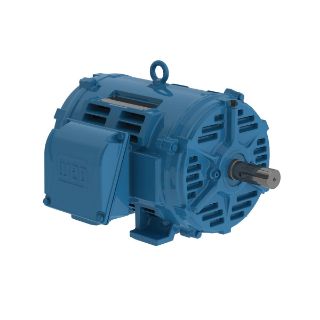

Actual Product May Vary From Image

05018OT3E326T-W40 WEG

Name: 05018OT3E326T-W40 WEG
Brand: WEG
SKU: 05018OT3E326T-W40 WEG
Price: 3,788.00 USD
Availability: OutOfStock

WEG 05018OT3E326T-W40 Premium Efficiency AC Motor, Open Drip-Proof Enclosure, 50 hp, 208 to 230/460 V, 60 Hz, 3 ph Phase, 324/6T Frame, 1800 rpm Speed, Foot Mount

Manufacturer: WEG

Manufacturer part number: 05018OT3E326T-W40

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3,788.00

Qty:

Product Details

Brand Name

WEG

Type

Premium Efficiency

Description

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

WEG AC Motor, Premium Efficiency, 50 hp, 208 to 230/460 V, 129 to 117/58.5 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Open Drip-Proof Enclosure, 324/6T Frame, 2-1/8 in Dia x 5-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Regreasable Ball Bearing, 146 ft-lb Torque, Foot Mounting, -20 to 40 deg C Ambient, Insulation Class: Class F, Cast Iron, 27.307 in L Dimensions

Application

General Purpose Applications

Standards

CSA C22.2 No. 100-04 | CSA C390 | IEEE STD 112 | NEMA MG-1 | UL 1004-1

Features

Rugged and compact design - with maximum reliability, ready for all application requirements, W40 motors have higher power density when compared with TEFC motors
Low vibration and noise levels - W40 motors have vibration velocity limits and noise levels as per NEMA MG-1 parts 7 and 9
Enhanced customer interface for easy installation and maintenance - reversible F1/F2 ready, prepared for opposite side auxiliary boxes drilling and installation, grease inlet/outlet improved access, easy access to flange bolts, flat areas for vibration sensors
Oversized terminal box - oversized and diagonally split terminal box for easier access and service operations
IP23 degree of protection - complete protection against touching on all live or rotating parts
Without flange

Specifications

Amperage Rating:	129 to 117/58.5 A
Bearing Type:	Regreasable Ball
Dimensions:	27.307 in L
Enclosure Type:	Open Drip-Proof
Frame:	324/6T
Frequency Rating:	60 Hz
Horsepower:	50 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Foot
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	2-1/8 in Dia x 5-1/4 in L
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C Ambient
Torque Rating:	146 ft-lb
Voltage Rating:	208 to 230/460 V
