056610 DOD

Picture of 056610 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
056610
product.name:
056610 DOD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$565.98 / EA

Description

Specifications

Ball Bearing Series:215 Series
Base to Center Height:3.5000
Base to Center Height (Unit):INCH
Bearing Type:Ball
Bolt Diameter:0.8750
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):9.5000
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):8.5000
Bolt to Bolt (Min) (Unit):INCH
Bore Length:2.4000
Bore Length (Unit):INCH
Dynamic Load Capacity:14872
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Two-Bolt Pillow Block
Insert Material:Steel
Lubrication:Grease
Maximum Speed:3000
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Clamp Collar
Shaft Diameter:2.9375
Shaft Diameter (Unit):INCH
Standoff Housing:No
Static Load Capacity:11108
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No
Take-Up Frame Size:LD-50,TS-350

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Shaft Diameter
2 15/16 in
Type
2 Bolt Pillow Block Ball Bearing

Customers who bought this item also bought

Picture of 127500 DOD

127500 DOD

MFG: Dodge
MFG#:127500
Info:P2B-SCEZ-012-PCR
$ -.--

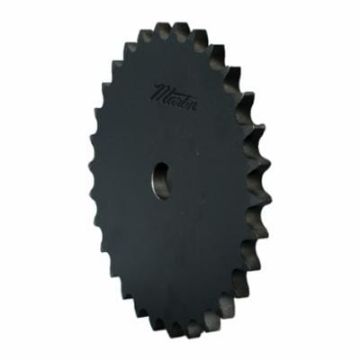

Picture of 100A24 MSG
