Actual Product May Vary From Image

06012OT3E404JP WEG

Name: 06012OT3E404JP WEG
Brand: WEG
SKU: 06012OT3E404JP WEG
Availability: OutOfStock

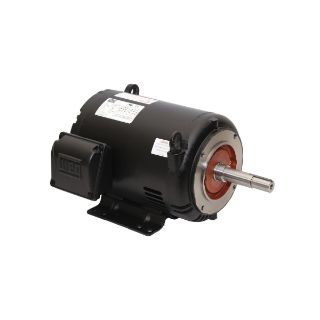

WEG 06012OT3E404JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 60 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 404/5JP Frame, 1200 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 06012OT3E404JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Motion Industries - 04865119

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 60 hp, 230/460 VAC, 70.3 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 404/5JP Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 262 ft-lb Torque, Footed Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 35.263 in L Dimensions

Standards

NEMA MG-1

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	70.3 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Dimensions:	35.263 in L
Enclosure Type:	Open Drip-Proof
Frame:	404/5JP
Frequency Rating:	60 Hz
Horsepower:	60 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	1200 rpm
Torque Rating:	262 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
