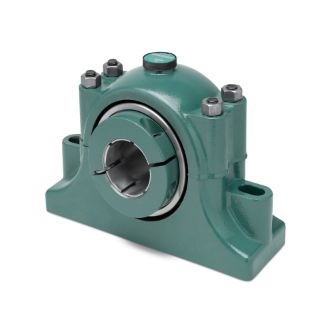

Picture of 065296 DOD

Actual Product May Vary From Image

065296 DOD

P2B-C-215

Manufacturer: Dodge

Manufacturer part number: 065296

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$4,482.30

Qty:

Product Details

Specifications

Base to Center Height:	4.7500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	12.3800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	11.1300
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	6.5000
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1750
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Shaft Attachment:	Clamp Collar
Shaft Diameter:	2.9375
Shaft Diameter (Unit):	INCH
Take-Up Frame Size:	HD-300

Resources

Tech Bulletin Engineering Drawing Installation
