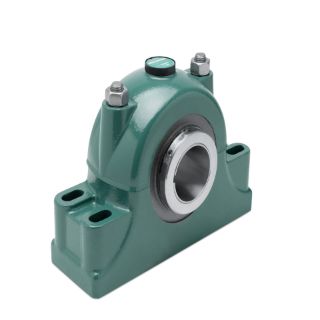

Picture of 066224 DOD

Actual Product May Vary From Image

066224 DOD

P4B-SD-207

Manufacturer: Dodge

Manufacturer part number: 066224

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$3,458.84

Qty:

Product Details

Specifications

Base to Center Height:	4.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	11.6300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.8800
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	2.5000
Bolt Width (Unit):	INCH
Bore Length:	5.0600
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2000
Maximum Speed (Unit):	RPM
Seal Type:	Piston Ring
Shaft Attachment:	Tapered Adapter
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Take-Up Frame Size:	HD-250

Resources

Brochure Tech Bulletin Engineering Drawing Installation
