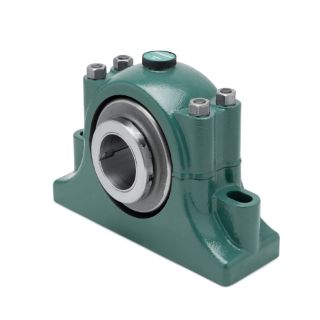

Picture of 066302 DOD

Actual Product May Vary From Image

066302 DOD

P2B-SD-200

Manufacturer: Dodge

Manufacturer part number: 066302

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,514.45

Qty:

Product Details

Specifications

Base to Center Height:	3.2500
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	9.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	8.2500
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.2500
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2500
Maximum Speed (Unit):	RPM
Seal Type:	Piston Ring
Shaft Attachment:	Tapered Adapter
Shaft Diameter:	2.0000
Shaft Diameter (Unit):	INCH
Take-Up Frame Size:	HD-200

Resources

Brochure Tech Bulletin Engineering Drawing Installation
