066413 DOD

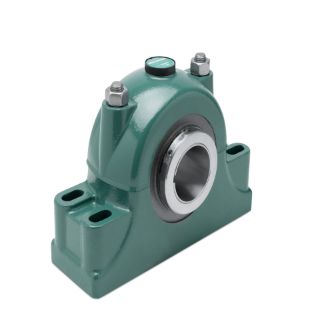

Picture of 066413 DOD

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

066413

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Log in for more accurate pricing

$12,743.60 / EA

Description

Specifications

Base to Center Height:	6.3800
Base to Center Height (Unit):	INCH
Bearing Type:	Tapered Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	16.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	15.0000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.2500
Bolt Width (Unit):	INCH
Bore Length:	8.5000
Bore Length (Unit):	INCH
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Split
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1250
Maximum Speed (Unit):	RPM
Seal Type:	Piston Ring
Shaft Attachment:	Tapered Adapter
Shaft Diameter:	3.7500
Shaft Diameter (Unit):	INCH
Take-Up Frame Size:	HD-400

Resources

Tech Bulletin Engineering Drawing Installation
