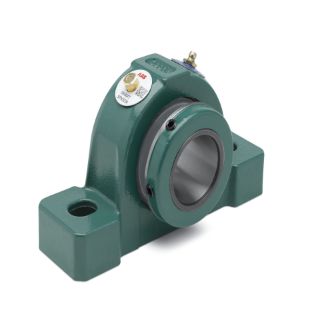

Actual Product May Vary From Image

070282 DOD

Name: 070282 DOD
Brand: Dodge
SKU: 070282 DOD
Price: 574.12 USD
Availability: InStock

P2B-S2-207R

Manufacturer: Dodge

Manufacturer part number: 070282

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
2	0
Loading...

$574.12

Qty:

Product Details

Base to Center Height:	2.7500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.3100
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.9400
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.2000
Bore Length (Unit):	INCH
Dynamic Load Capacity:	39000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1740
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	47500
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-200,LD-40
