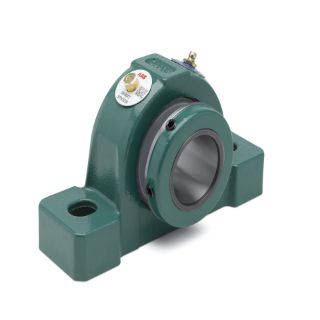

070308 DOD

Name: 070308 DOD
Brand: Dodge
SKU: 070308 DOD
Price: 884.71 USD
Availability: InStock

P2B-S2-215RE

Manufacturer: Dodge

Manufacturer part number: 070308

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
4	0
Loading...

$884.71

Qty:

Product Details

Base to Center Height:	3.2500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.7500
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	8.3100
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	7.9400
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	3.5900
Bore Length (Unit):	INCH
Dynamic Load Capacity:	41500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	1490
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Setscrew
Shaft Diameter:	2.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	53000
Static Load Capacity (Unit):	POUND_FORCE
Take-Up Frame Size:	HD-250,LD-45
