07401027 HWD

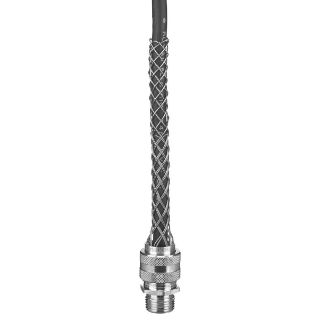

Wiring Device-Kellems 07401027 Form 5 Insulated Liquidtight Male Straight Standard Deluxe Cord Grip With Stainless Steel Mesh, 1-1/4 in Trade, 1 to 1-1/8 in Cable Openings, Aluminum
Manufacturer part number: 07401027
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$168.72

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 5 Insulated Liquidtight Male Straight Standard

Description

Kellems® strain relief grips are designed to prevent tension from being transmitted to joints and terminals on electrical cord, cable and conduit. In most applications, a Kellems® grip for strain relief is stronger than the cable itself and gives much greater security than the use of a fitting alone. Kellems® Grips for strain relief help make electrical systems safer and save money by minimizing downtime from costly electrical failure due to cable pull out. Kellems® Grips also aid in compliance with the National Electric Code's terminal tension protection requirements.
Wiring Device-Kellems Deluxe Cord Grip, Form 5 Insulated Liquidtight Male Straight Standard, 1-1/4 in, Cable Openings: 1 to 1-1/8 in, Jacketed Cable, MNPT, Aluminum, Metallic, -30 to 225 deg F, 2.31 in Dia x 2.44 in L

Application

Crane and Hoist Pendant Drop Stations, Hand Tools, Pumps and Processing Equipment and Wet Locations

Standards

CSA Certified | RoHS Compliant | UL 898D/899D

Features

  • Endless weave provides easy cable/flexible conduit installation
  • Stainless steel mesh is corrosion resistant
  • Can be used inside or outside, it eliminates cable or flexible conduit pull-out and reduces costly downtime
  • Multi-weave grip gives cable arc-of-bend control minimizing cable damage and extending cable life
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Stainless steel mesh
  • Double-single weave
  • Used in outdoors or indoors where subjected to moisture or splash
  • Tapered thread
  • Aluminum collar, compression nut
  • Suitable for use in wet locations when used with a listed nylon washer between box and fitting

Specifications

Cable Openings:1 to 1-1/8 in
Cable Type:Insulated
Color:Metallic
Connection Type:MNPT
Country of Origin:CN
Dimensions:2.31 in Dia x 2.44 in L
Material:Aluminum
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:1-1/4 in
