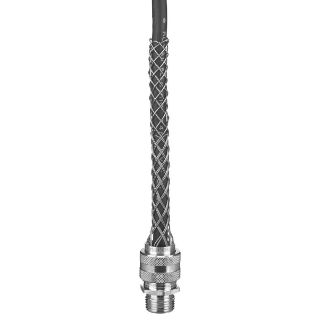

Picture of 07401028 HWD
Actual Product May Vary From Image

07401028 HWD

Wiring Device-Kellems 07401028 Deluxe Form 5 Liquidtight Standard Straight Cord Grip With Stainless Steel Mesh, 1-1/4 in Trade, 1-1/8 to 1-1/4 in Cable Openings, Aluminum
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 07401028
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$168.72

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 5 Standard

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Wiring Device-Kellems Cord Grip, Deluxe Form 5 Liquidtight Standard Straight, 1-1/4 in, Cable Openings: 1-1/8 to 1-1/4 in, Jacketed Cable, MNPT, 5-5/8 in Mesh Length, Aluminum, Metallic, -30 to 225 deg F, 2.31 in Dia x 2.44 in L

Application

For hazardous locations, wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors, machine tools, use in wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | NEC Certified | RoHS Compliant | UL 898D/899D | UL 94 V-2 Flammability Rating | UL 94 HB Flammabilty Rating

Features

  • Helps to prevent cable pull-outs
  • Controls cable arc of bend
  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • Straight aluminum connector stainless grip
  • For insulated cables
  • 1.719 to 1.766 in recommended knockout hole
  • 1.26 in Dia throat
  • Multi-weave grip gives cable arc of bend control minimizing cable damage and extending cable life
  • Endless weave provides easy cable/flexible conduit installation
  • Stainless steel strand, aluminum nut and neoprene bushing

Specifications

Cable Openings:1-1/8 to 1-1/4 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:2.31 in Dia x 1.7 in L
Material:Aluminum
Mesh Length:5-5/8 in
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:1-1/4 in
