Actual Product May Vary From Image

07401035 HWD

Name: 07401035 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 07401035 HWD
Price: 265.57 USD
Availability: OutOfStock

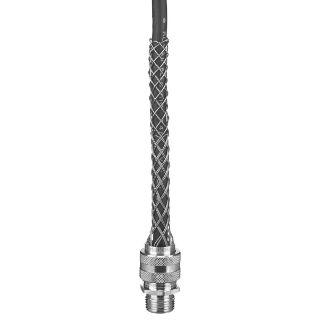

Wiring Device-Kellems 07401035 Form 6 Male Straight Standard Deluxe Cord Grip With Stainless Steel Mesh, 2 in Trade, 1.687 to 1.812 in Cable Openings, Aluminum

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 07401035

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$265.57

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 6 Liquidtight Standard Duty Strain Relief

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.

Wiring Device-Kellems Deluxe Cord Grip, Form 6 Male Straight Standard, 2 in, Cable Openings: 1.687 to 1.812 in, Jacketed Cable, MNPT, 10-1/4 in Mesh Length, Aluminum, Metallic, -30 to 225 deg F, 3 in Dia x 3 in L

Application

For wet location when used with a listed nylon washer between box and fitting, hazardous location and insulated cables applications

Standards

CSA Certified | RoHS Compliant | UL 898D | UL 899D

Features

Helps to prevent cable pull-out
Controls cable arc-of-bend
Provides a liquidtight seal
Corrosion resistant stainless steel mesh with aluminum collar
An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
Straight aluminum connector stainless grip
UL 94-HB mesh grip flammability rating
2.453 to 2.5 in recommended knockout hole
Suitable for use in hazardous locations
Multi-weave grip gives cable arc-of-bend control
Endless weave provides easy cable/flexible conduit installation
Stainless steel strand, aluminum nut, neoprene bushing
2-11-1/2 NPT
Suitable for use in wet locations when used with a listed nylon washer between box and fitting

Specifications

Cable Openings:	1.687 to 1.812 in
Cable Type:	Jacketed
Color:	Metallic
Connection Type:	MNPT
Country of Origin:	US
Dimensions:	3 in Dia x 3 in L
Material:	Aluminum
Mesh Length:	10-1/4 in
Number of Conductors:	1
Temperature Rating:	-30 to 225 deg F
Trade Size:	2 in

Resources
