Actual Product May Vary From Image

0744677 FAL

Name: 0744677 FAL
Brand: Rexnord
SKU: 0744677 FAL
Price: 288.19 USD
Availability: OutOfStock

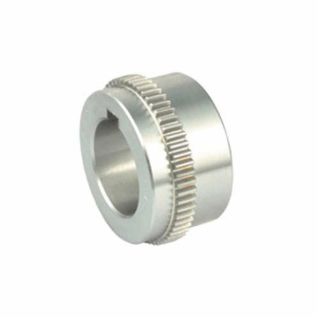

FALK® Lifelign® 0744677 G Series Full Flex Gear Coupling Hub, 1020G Coupling, 2.373 in Dia Bore, 2.44 in Length Through Bore, 4.14 in Dia Hub, Steel

Manufacturer: Rexnord

Manufacturer part number: 0744677

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$288.19

Qty:

Product Details

Brand Name

FALK®

Type

Full Flex

Description

Stock flex hubs for G series double and single engagement couplings. The Lifelign® flex hubs have teeth that mate with a sleeve to transmit torque and accommodate equipment shaft misalignment.

FALK® Lifelign® Gear Coupling Hub, Full Flex, Series: G Series, 1020G Coupling, 2.373 in Bore Dia, 4.14 in Hub Dia, 2.44 in Hub Length, 5/8 x 5/16 in Keyway, 5600 rpm Maximum, 2.44 in Length Through Bore, Steel

Features

Stock flex hubs

Specifications

Bore Diameter:	2.373 in
Coupling Size:	1020G
Hub Diameter:	4.14 in
Hub Length:	2.44 in
Keyway Size:	5/8 x 5/16 in
Length Through Bore:	2.44 in
Material:	Steel
Maximum Speed:	5600 rpm
Series:	G Series
