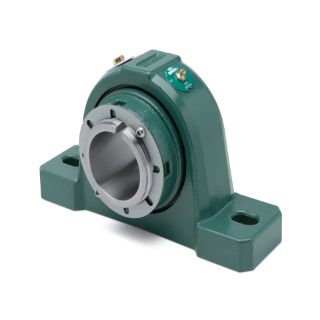

Actual Product May Vary From Image

074469 DOD

Name: 074469 DOD
Brand: Dodge
SKU: 074469 DOD
Availability: OutOfStock

P2B-ISN-517-215-LR MOD

Manufacturer: Dodge

Manufacturer part number: 074469

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

Price on Request

Qty:

Product Details

Base to Center Height:	2413.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Spherical Roller
Bolt Diameter:	20.0000
Bolt Diameter (Unit):	MILLIMETER
Bolt to Bolt (Max):	6814.8200
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6210.3000
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2258.0600
Bore Length (Unit):	INCH
Dynamic Load Capacity:	41500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Grease Name:	MobilGrease XHP222
Housing Construction:	Solid
Housing Dimensional Standard:	SN
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2250
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	2.9375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	53000
Static Load Capacity (Unit):	POUND_FORCE
