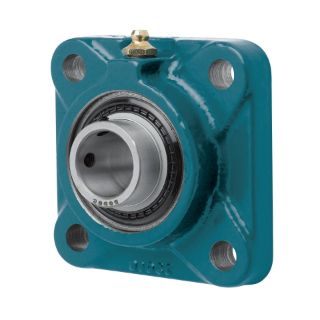

Actual Product May Vary From Image

074530 DOD

Name: 074530 DOD
Brand: Dodge
SKU: 074530 DOD
Price: 239.76 USD
Availability: OutOfStock

F4B-SCM-100-HT

Manufacturer: Dodge

Manufacturer part number: 074530

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$239.76

Qty:

Product Details

Ball Bearing Series:	206 Series
Bearing Type:	Ball
Bolt Diameter:	0.4375
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	3.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.2500
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.5200
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Krytox GPL 206
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	4500
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	1.0000
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	Yes
Suitable For Washdown:	No
