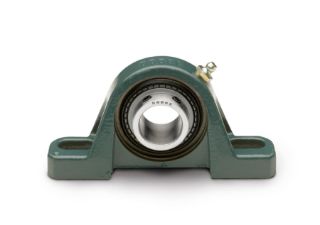

Name: 074670 DOD
Brand: Dodge
SKU: 074670 DOD
Availability: OutOfStock

074670 DOD

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

074670

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Specifications

Ball Bearing Series:	211 Series
Base to Center Height:	2.5000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.4400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.3800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.2200
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Krytox GPL 206
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2500
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	50.0000
Shaft Diameter (Unit):	MILLIMETER
Standoff Housing:	No
Suitable for High Temperature:	Yes
Suitable For Washdown:	No
Take-Up Frame Size:	LD-40,TS-300
