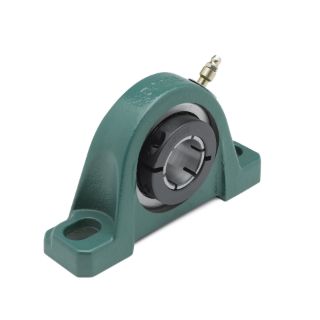

Actual Product May Vary From Image

074930 DOD

Name: 074930 DOD
Brand: Dodge
SKU: 074930 DOD
Price: 110.47 USD
Availability: OutOfStock

P2B-DL-012 MOD

Manufacturer: Dodge

Manufacturer part number: 074930

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$110.47

Qty:

Product Details

Ball Bearing Series:	204 Series
Base to Center Height:	1.3100
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.3750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	4.1900
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.3800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.2800
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease FM222
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	7500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Clamp Collar
Shaft Diameter:	0.7500
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-10,TS-100
