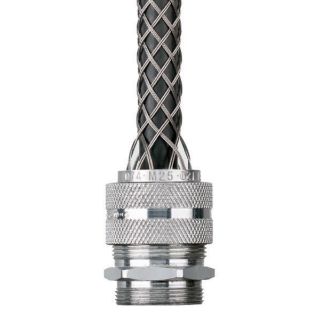

Picture of 074M32025 HWD
Actual Product May Vary From Image

074M32025 HWD

Wiring Device-Kellems 074M32025 Form 4 Liquidtight Metric Standard Deluxe Cord Grip, 32 mm Trade, 1 Conductor, 7/8 to 1 in Cable Openings, Aluminum/Stainless Steel
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 074M32025
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 24
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$150.28

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 4 Liquidtight Metric Standard

Description

Wiring Device-Kellems Deluxe Cord Grip, Form 4 Liquidtight Metric Standard, 32 mm Trade, 1 Conductor, Cable Openings: 7/8 to 1 in, MNPT Straight Connection, Aluminum/Stainless Steel, Metallic, -30 to 240 deg F

Application

For use in wet locations when used with a listed nylon washer between box and fitting and hazardous locations

Standards

Class I Division 2, Class II Division 1 and 2, Class III Division 1 and 2 | CSA Certified | NEC Approved | RoHS Compliant | UL 94 V-2 Flammability Rated | UL Listed

Features

  • Stainless steel mesh is corrosion-resistant
  • Aluminum fitting
  • Neoprene bushing is oil and watertight
  • Stainless steel strand
  • Aluminum nut
  • M32 hub size
  • Locknut or tapped opening material mounting hardware

Specifications

Cable Openings:7/8 to 1 in
Color:Metallic
Connection Type:MNPT Straight
Country of Origin:US
Material:Aluminum/Stainless Steel
Number of Conductors:1
Temperature Rating:-30 to 240 deg F
Trade Size:32 mm
