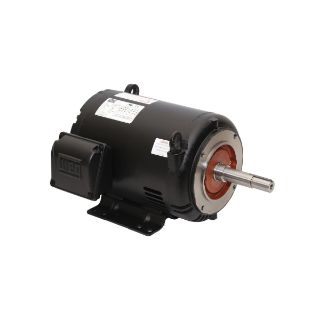

Actual Product May Vary From Image

07512OT3E405JP WEG

Name: 07512OT3E405JP WEG
Brand: WEG
SKU: 07512OT3E405JP WEG
Availability: OutOfStock

WEG 07512OT3E405JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 75 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 404/5JP Frame, 1200 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 07512OT3E405JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Motion Industries - 04865122

Description

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 75 hp, 230/460 VAC, 85.9 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 404/5JP Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 329 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 35.263 in L Dimensions

Standards

NEMA MG-1

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	85.9 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Dimensions:	35.263 in L
Enclosure Type:	Open Drip-Proof
Frame:	404/5JP
Frequency Rating:	60 Hz
Horsepower:	75 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	1200 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	329 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
