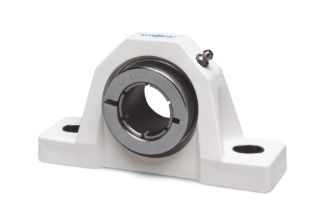

Actual Product May Vary From Image

075138 DOD

Name: 075138 DOD
Brand: Dodge
SKU: 075138 DOD
Price: 436.12 USD
Availability: OutOfStock

P2B-DLEZ-112-PCR MOD

Manufacturer: Dodge

Manufacturer part number: 075138

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$436.12

Qty:

Product Details

Ball Bearing Series:	209 Series
Base to Center Height:	2.1300
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	5.9600
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.4200
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.0100
Bore Length (Unit):	INCH
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease FM222
Housing Construction:	Solid
Housing Material:	Polymer
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Plated Steel
Lubrication:	Grease
Maximum Speed:	3000
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Clamp Collar
Shaft Diameter:	1.7500
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Suitable for High Temperature:	No
Suitable For Washdown:	Yes
Take-Up Frame Size:	LD-20,TS-250
