075315 DOD

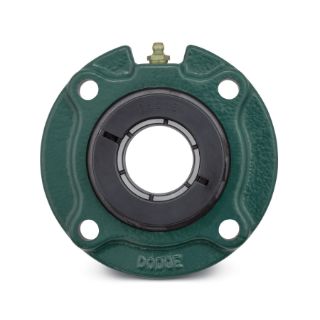

Picture of 075315 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
075315
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$352.31 / EA

Description

Specifications

Ball Bearing Series:212 Series
Bearing Type:Ball
Bolt Circle:6.0000
Bolt Circle (Unit):INCH
Bolt Diameter:0.5000
Bolt Diameter (Unit):INCH
Bore Length:2.3800
Bore Length (Unit):INCH
Dynamic Load Capacity:11791
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:No
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Cast Iron
Housing Type:Piloted Flange
Insert Material:Steel
Lubrication:Grease
Maximum Speed:3500
Maximum Speed (Unit):RPM
Pilot Depth:0.8800
Pilot Depth (Unit):INCH
Pilot Diameter:5.0000
Pilot Diameter (Unit):INCH
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Clamp Collar
Shaft Diameter:2.4375
Shaft Diameter (Unit):INCH
Standoff Housing:No
Static Load Capacity:8100
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No

Resources

Tech BulletinInstallation

Products Specifications

Brand Name
Baldor-Dodge
Flange Type
Piloted Flange
Measuring Units
Inch
Shaft Diameter
2 7/16 in
