Actual Product May Vary From Image

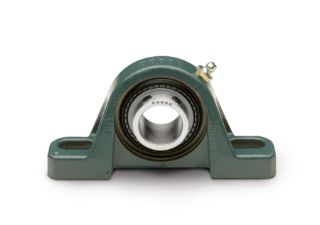

076008 DOD

Name: 076008 DOD
Brand: Dodge
SKU: 076008 DOD
Price: 162.44 USD
Availability: OutOfStock

P2B-SCED-108

Manufacturer: Dodge

Manufacturer part number: 076008

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$162.44

Qty:

Product Details

Ball Bearing Series:	208 Series
Base to Center Height:	2.1300
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	5.8800
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.1800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.9400
Bore Length (Unit):	INCH
Dynamic Load Capacity:	7332
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Mobilith SHC PM 220
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3500
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	1.5000
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	4475
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-20,TS-250
